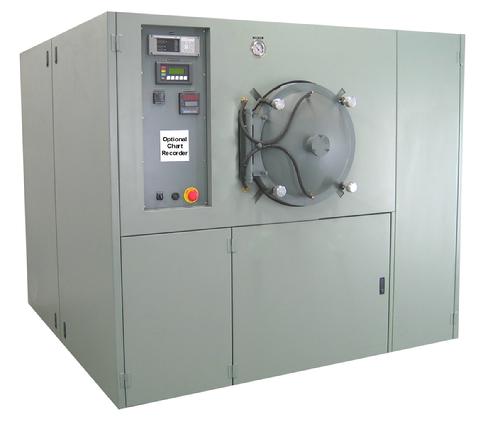

9" High x 10-1/2" Wide x 19" Deep Horizontal Vacuum Furnace
Maximum Temperature: 1300oC
Internal Dimensions: 9” high x 10.5” wide x 19” deep element-to-element
External Dimensions: Approximately 73” high x 81” wide x 80” deep
Power Requirements: 480 volts, 3 phase, 60 hertz Atmosphere: High vacuum operation. Inert gas backfill to aid cooling. Features: Standard one-year warranty.
This is a totally packaged and assembled unit that is shipped as one piece, requiring only the water, gas, and power to be connected to the appropriate locations. Yokogawa UP550 digital programmable temperature controller with 30 programs and 300 segments. Fully automatic operation with new, improved PLC programmer/controller with alphanumeric display to indicate furnace processing cycles. Molybdenum hot zone. Molybdenum heating elements. Mechanical vacuum pump 6” diffusion pump (Optional nitrogen cold trap available) Digital vacuum gauge Digital high limit safety controller We provide written operating procedures, complete detailed electrical schematics, and manuals for all instrumentation and controls on the furnace. This unit is leak-tested with a helium mass spectrometer, with no detectable leak in the 10-9 range. Fully operational condition. We can demonstrate this unit at our plant in Terryville, CT. The following options are available at an additional charge: Liquid nitrogen cold trap over the top of the diffusion pump to facilitate water vapor pumping and minimize the possibility of any diffusion pump oil back streaming. Comes with liquid nitrogen control solenoid valve and digital temperature controller to minimize liquid nitrogen controller.
Yokogawa DX100 6-channel paperless datalogging chart recorder with digital communications. Network compatible – can appear as a node on a network, making remote data gathering fast and easy. Includes built-in memory card for storage. Remote diagnostics via a modem, enabling us to remotely aid in troubleshooting the furnace and guide your maintenance people directly. This should virtually eliminate the need for field service. Light loader. Allows quick and easy communications between the UP550 and either a laptop or desktop PC-based computer. Can be used for writing programs and storing detailed configuration data. 6-thermocouple uniformity feedthrough port for 1/16” Type “K” thermocouples (not included) to monitor temperature inside the furnace.
Please contact us at:
THE FURNACE SOURCE 99 Agney Avenue Terryville, CT 06786
