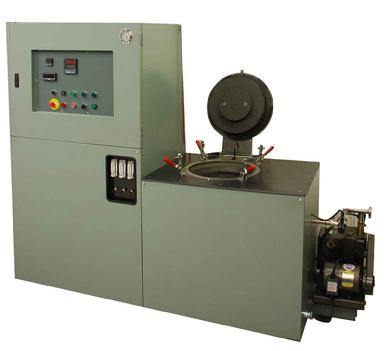

6.5" Diameter x 16" High Top-Loading High-Temperature Vacuum Furnace
Maximum Temperature: 2200o C Hot Zone Dimensions: 6 ½ diameter x 16 high External Dimensions: 89 long x 29 deep x 72 high Power Requirements: 480 volts, 60 Hz, single phase, approximately 110 amps full load
Atmosphere: Rough vacuum or inert gas (nitrogen or argon) operation at atmospheric pressure
Features: Standard one-year warranty This is a totally enclosed, packaged, and assembled unit that is shipped as one piece, requiring only the water, gas, and power to be connected to the appropriate locations. Top-loading, vertical operation Manual valve operation with automatic temperature ramps and soaks New Yokogawa UP550 digital programmable temperature controller with 30 programs and 300 segments High-temperature Type C thermocouples for control (See Options for optical pyrometer) New digital high limit controller All new graphite hot zone All new graphite heating elements New power supply New current limiting SCR pack Mechanical vacuum pump New digital vacuum gauge We provide written operating procedures, complete detailed electrical schematics, and manuals for all instrumentation and controls on the furnace. This unit is leak-tested with a helium mass spectrometer, with no detectable leak in the 10-9 range. Price includes one day of training at our facility in Terryville, CT. Fully operational condition. We can demonstrate this unit at our plant in Terryville, CT. The following options are available at an additional charge: Optical pyrometer with digital programmable temperature controller will operate the furnace from 1000o C to 2200o C. Automatic transfer using a retractable thermocouple from room temperature to 2200o C. This system will use a thermocouple to control the furnace from room temperature to 1000o C, at which point it will retract and automatically transfer the control of the furnace to the optical pyrometer. The programmable temperature control will then continue with ramps and soaks throughout the rest of the cycle. When the furnace cools to 1000o C, it will automatically retransfer control from the pyrometer to the thermocouple. Yokogawa 6-channel DX100 paperless datalogging chart recorder with digital communications. Network compatible can appear as a node on a network, making remote data gathering fast and easy. Includes built-in memory card for storage. Light loader. Allows quick and easy communications between the UP550 and either a laptop or desktop PC-based computer. Can be used for writing programs and storing detailed configuration data.
